Tube In Tube UHT Sterilization Machine For Milk Beverage Fruit Juice Pasteurizer

Brand Name : YGT

Model Number : UHT-JUICE

Certification : CE

Place of Origin : CHINA

MOQ : 1 sets

Price : CUSTOM MADE

Payment Terms : L/C, T/T

Supply Ability : 10 SETS PER MONTH

Delivery Time : 45 WORKING DAYS

Packaging Details : export standard

Name : Tube in tube sterilizer

Material : SUS304 Stainless Steel

Capacity : 10t/h

Application : TUBULAR STERILIZER FOR MILK, FRUIT JUICE, CONCENTRATED JUICE, TEA BEVERAGES, ...

Contact Now

Tube In Tube UHT Sterilization Machine For Milk Beverage Fruit Juice Pasteurizer

Tubular sterilizer is primary product in our company. This machine is widely used in sterilization of milk, concentration juice, jam, tea beverage and other high viscosity materials. Four layer casing structure, the material layer has diversion device, both sides heated by superheated water. It is the first choice of concentrated fruit juice and jam sterilization with advantages of short heating time, great sterilization effect and low energy consumption.

Parameters

Model	YGT-0.5	YGT-1	YGT-3	YGT-5	YGT-10
Capacity	500L/H	1000L/H	3000L/H	5000L/H	10000L/H
Inlet Temperature	25℃-45℃	25℃-45℃	25℃-45℃	25℃-45℃	25℃-45℃
Sterilizing time	2-120S or costomized
Sterilizing Temperature	95~138℃	95~138℃	95~138℃	95~138℃	95~138℃
Outlet Temperature	25℃-40℃	25℃-40℃	25℃-40℃	25℃-40℃	25℃-40℃
Steam pressure	0.6MPa	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Steam consumption	~100Kg/h	~150Kg/h	~300Kg/h	~700Kg/h	~1000Kg/h
Power	10KW	18KW	25KW	37KW	48KW
Dimension	3500×1600×1500	4200×2200×1600	5000×2250×1700	5500×2500×1800	7500×3500×2200
Wight	1200kg	2000kg	2800kg	3800kg	7000kg

Production Features

1. stainless steel SUS 304 material besides motors, electrical appliances, soft connections.

2. Bring in CIP/SIP system, sterilizing pipes do aseptic treatment at high temperature for 125 degrees before production and after sterilization.

3. The control system composed by human-computer interface and PLC, easy to operate.

4. Sterile protection for pipe joints and connection points, strictly guarantee product quality.

5. Bring in heat recovery system, energy saving more than 30% the same industry.

6. The overall design has better pass efficency, can ensure the flow speed and heating time of the viscous materials.

7. Our machine can save 30% energy than the same industry becuse of the structural reasons.

8. The main team valve of our equipment is SpiraySarco brand and the main electrical equipment is SEIMENS brand.

Accessory brand:

Product Tags:

uht pasteurization equipment

milk sterilizer machine

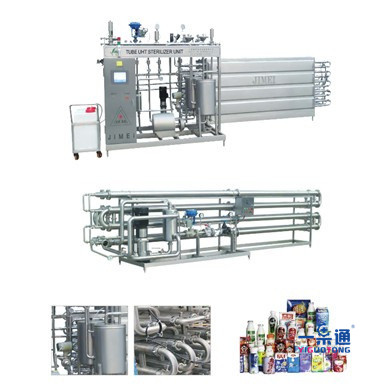

Tube In Tube UHT Sterilization Machine For Milk Beverage Fruit Juice Pasteurizer Images
